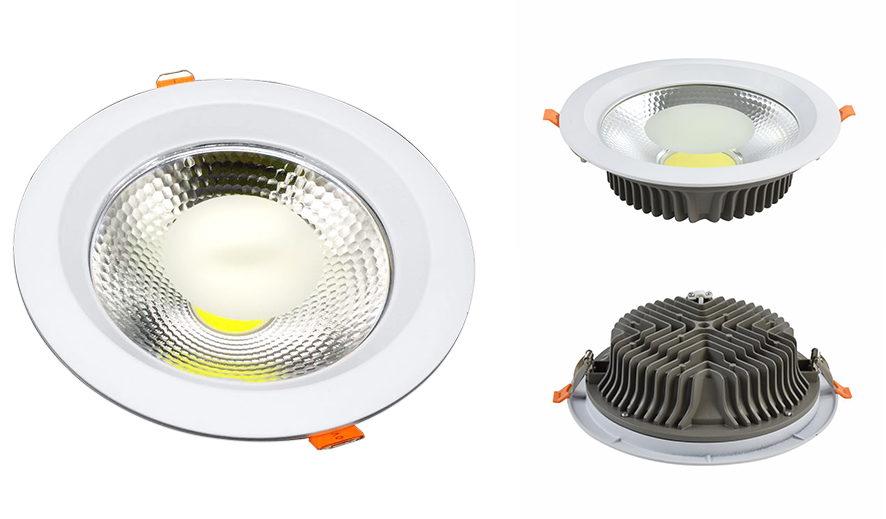

COB Down Light TY Series


                             ●Product Parameter:
| Model No. | Power | Size | Cut-out | Luminous Flux | Voltage | CCT | CRI | Beam Angle |
| XR-TY-7W | 7W | ø90*H52 mm | ø75mm | 560lm | AC85-265V | 3000K 4000K 6500K | ≥80 | 120° |
| XR-TY-10W | 10W | ø130*H52 mm | ø105mm | 800lm | AC85-265V | 3000K 4000K 6500K | ≥80 | 120° |
| XR-TY-15W | 15W | ø160*H52 mm | ø145mm | 1200lm | AC85-265V | 3000K 4000K 6500K | ≥80 | 120° |
| XR-TY-20W | 20W | ø185*H55 mm | ø160mm | 1600lm | AC85-265V | 3000K 4000K 6500K | ≥80 | 120° |
| XR-TY-30W | 30W | ø220*H58 mm | ø200mm | 2400lm | AC85-265V | 3000K 4000K 6500K | ≥80 | 120° |
●Product Features:
*Super Brightness Recessed LED Down Light
*No UV Radiation, No Mercury, high-efficiency green environment protection.
                                        *LED for lighting source, super high, bright, soft and uniform light.
                                        *High CRI≥80 makes the illuminated object look natural and vivid.
*Start without delay, frequent flash and noise, apply for hotel, household, library, office and such
                                        *places that there needs to be quiet.
                                        *High lumen output per watt provides high energy savings, save up to 70-90% more energy than *traditional lights.
                                        *Dimmable version is available.
●Application:
Household lighting, hotel lighting, library, reading room and public lighting.
